cilium-agent的DaemonSet启动流程

概述

本文主要分析 cilium-agent 作为 DaemonSet 在每个节点的启动流程。

架构分析

下面按照 cilium-agent 从 init-container 到业务容器启动的过程分析,可以先看看 cilium-agent 的 init-container 的定义。

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
# 省略一些非关键配置
initContainers:
- name: config
  command:
  - cilium
  - build-config
  image: quay.io/cilium/cilium:v1.14.4@sha256:4981767b787c69126e190e33aee93d5a076639083c21f0e7c29596a519c64a2e
  imagePullPolicy: IfNotPresent
  volumeMounts:
  - mountPath: /tmp
    name: tmp
- name: mount-cgroup
  command:
  - sh
  - -ec
  - |
    cp /usr/bin/cilium-mount /hostbin/cilium-mount;
    nsenter --cgroup=/hostproc/1/ns/cgroup --mount=/hostproc/1/ns/mnt "${BIN_PATH}/cilium-mount" $CGROUP_ROOT;
    rm /hostbin/cilium-mount
  env:
  - name: CGROUP_ROOT
    value: /run/cilium/cgroupv2
  - name: BIN_PATH
    value: /opt/cni/bin
  image: quay.io/cilium/cilium:v1.14.4@sha256:4981767b787c69126e190e33aee93d5a076639083c21f0e7c29596a519c64a2e
  securityContext:
    capabilities:
      add:
      - SYS_ADMIN
      - SYS_CHROOT
      - SYS_PTRACE
      drop:
      - ALL
    seLinuxOptions:
      level: s0
      type: spc_t
  volumeMounts:
  - mountPath: /hostproc
    name: hostproc
  - mountPath: /hostbin
    name: cni-path
- name: apply-sysctl-overwrites
  command:
  - sh
  - -ec
  - |
    cp /usr/bin/cilium-sysctlfix /hostbin/cilium-sysctlfix;
    nsenter --mount=/hostproc/1/ns/mnt "${BIN_PATH}/cilium-sysctlfix";
    rm /hostbin/cilium-sysctlfix
  env:
  - name: BIN_PATH
    value: /opt/cni/bin
  image: quay.io/cilium/cilium:v1.14.4@sha256:4981767b787c69126e190e33aee93d5a076639083c21f0e7c29596a519c64a2e
  securityContext:
    capabilities:
      add:
      - SYS_ADMIN
      - SYS_CHROOT
      - SYS_PTRACE
      drop:
      - ALL
    seLinuxOptions:
      level: s0
      type: spc_t
  volumeMounts:
  - mountPath: /hostproc
    name: hostproc
  - mountPath: /hostbin
    name: cni-path
- name: mount-bpf-fs
  args:
  - mount | grep "/sys/fs/bpf type bpf" || mount -t bpf bpf /sys/fs/bpf
  command:
  - /bin/bash
  - -c
  - --
  image: quay.io/cilium/cilium:v1.14.4@sha256:4981767b787c69126e190e33aee93d5a076639083c21f0e7c29596a519c64a2e
  securityContext:
    privileged: true
  volumeMounts:
  - mountPath: /sys/fs/bpf
    mountPropagation: Bidirectional
    name: bpf-maps
- name: clean-cilium-state
  command:
  - /init-container.sh
  env:
  - name: CILIUM_ALL_STATE
    valueFrom:
      configMapKeyRef:
        key: clean-cilium-state
        name: cilium-config
        optional: true
  - name: CILIUM_BPF_STATE
    valueFrom:
      configMapKeyRef:
        key: clean-cilium-bpf-state
        name: cilium-config
        optional: true
  - name: KUBERNETES_SERVICE_HOST
    value: 192.168.1.200
  - name: KUBERNETES_SERVICE_PORT
    value: "6443"
  image: quay.io/cilium/cilium:v1.14.4@sha256:4981767b787c69126e190e33aee93d5a076639083c21f0e7c29596a519c64a2e
  resources:
    requests:
      cpu: 100m
      memory: 100Mi
  securityContext:
    capabilities:
      add:
      - NET_ADMIN
      - SYS_MODULE
      - SYS_ADMIN
      - SYS_RESOURCE
      drop:
      - ALL
    seLinuxOptions:
      level: s0
      type: spc_t
  volumeMounts:
  - mountPath: /sys/fs/bpf
    name: bpf-maps
  - mountPath: /run/cilium/cgroupv2
    mountPropagation: HostToContainer
    name: cilium-cgroup
  - mountPath: /var/run/cilium
    name: cilium-run
- name: install-cni-binaries
  command:
  - /install-plugin.sh
  image: quay.io/cilium/cilium:v1.14.4@sha256:4981767b787c69126e190e33aee93d5a076639083c21f0e7c29596a519c64a2e
  resources:
    requests:
      cpu: 100m
      memory: 10Mi
  securityContext:
    capabilities:
      drop:
      - ALL
    seLinuxOptions:
      level: s0
      type: spc_t
  volumeMounts:
  - mountPath: /host/opt/cni/bin
    name: cni-path

从 volumes 字段看,整个 Pod 启动需要创建一些宿主机的文件夹路径。

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
 volumes:
 - emptyDir: {}
   name: tmp
 - hostPath:
     path: /var/run/cilium
     type: DirectoryOrCreate
   name: cilium-run
 - hostPath:
     path: /sys/fs/bpf
     type: DirectoryOrCreate
   name: bpf-maps
 - hostPath:
     path: /proc
     type: Directory
   name: hostproc
 - hostPath:
     path: /run/cilium/cgroupv2
     type: DirectoryOrCreate
   name: cilium-cgroup
 - hostPath:
     path: /opt/cni/bin
     type: DirectoryOrCreate
   name: cni-path
 - hostPath:
     path: /etc/cni/net.d
     type: DirectoryOrCreate
   name: etc-cni-netd
 - hostPath:
     path: /lib/modules
     type: ""
   name: lib-modules
 - hostPath:
     path: /run/xtables.lock
     type: FileOrCreate
   name: xtables-lock
 - name: clustermesh-secrets
   projected:
     defaultMode: 256
     sources:
     - secret:
         name: cilium-clustermesh
         optional: true
     - secret:
         items:
         - key: tls.key
           path: common-etcd-client.key
         - key: tls.crt
           path: common-etcd-client.crt
         - key: ca.crt
           path: common-etcd-client-ca.crt
         name: clustermesh-apiserver-remote-cert
         optional: true
 - configMap:
     defaultMode: 420
     name: cni-configuration
   name: cni-configuration
 - hostPath:
     path: /proc/sys/net
     type: Directory
   name: host-proc-sys-net
 - hostPath:
     path: /proc/sys/kernel
     type: Directory
   name: host-proc-sys-kernel
 - name: hubble-tls
   projected:
     defaultMode: 256
     sources:
     - secret:
         items:
         - key: tls.crt
           path: server.crt
         - key: tls.key
           path: server.key
         - key: ca.crt
           path: client-ca.crt
         name: hubble-server-certs
         optional: true

再看看 cilium-agent container 的定义。

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
# 省略非关键信息
      containers:
        - name: cilium-agent
          image: "quay.io/cilium/cilium:v1.14.4"
          command:
            - cilium-agent
          args:
            - --config-dir=/tmp/cilium/config-map
          startupProbe:
            httpGet:
              host: "127.0.0.1"
              path: /healthz
              port: 9879
              scheme: HTTP
              httpHeaders:
                - name: "brief"
                  value: "true"
            failureThreshold: 105
            periodSeconds: 2
            successThreshold: 1
          livenessProbe:
            httpGet:
              host: "127.0.0.1"
              path: /healthz
              port: 9879
              scheme: HTTP
              httpHeaders:
                - name: "brief"
                  value: "true"
            periodSeconds: 30
            successThreshold: 1
            failureThreshold: 10
            timeoutSeconds: 5
          readinessProbe:
            httpGet:
              host: "127.0.0.1"
              path: /healthz
              port: 9879
              scheme: HTTP
              httpHeaders:
                - name: "brief"
                  value: "true"
            periodSeconds: 30
            successThreshold: 1
            failureThreshold: 3
            timeoutSeconds: 5
          env:
            - name: K8S_NODE_NAME
              valueFrom:
                fieldRef:
                  apiVersion: v1
                  fieldPath: spec.nodeName
            - name: CILIUM_K8S_NAMESPACE
              valueFrom:
                fieldRef:
                  apiVersion: v1
                  fieldPath: metadata.namespace
            - name: CILIUM_CLUSTERMESH_CONFIG
              value: /var/lib/cilium/clustermesh/
            - name: KUBERNETES_SERVICE_HOST
              value: hh-k8s-noah-sc-staging001-master.api.vip.com
          lifecycle:
            postStart:
              exec:
                command:
                  - "bash"
                  - "-c"
                  - |
                    set -o errexit
                    set -o pipefail
                    set -o nounset

                    # When running in AWS ENI mode, it's likely that 'aws-node' has
                    # had a chance to install SNAT iptables rules. These can result
                    # in dropped traffic, so we should attempt to remove them.
                    # We do it using a 'postStart' hook since this may need to run
                    # for nodes which might have already been init'ed but may still
                    # have dangling rules. This is safe because there are no
                    # dependencies on anything that is part of the startup script
                    # itself, and can be safely run multiple times per node (e.g. in
                    # case of a restart).
                    if [[ "$(iptables-save | grep -c 'AWS-SNAT-CHAIN|AWS-CONNMARK-CHAIN')" != "0" ]];
                    then
                        echo 'Deleting iptables rules created by the AWS CNI VPC plugin'
                        iptables-save | grep -v 'AWS-SNAT-CHAIN|AWS-CONNMARK-CHAIN' | iptables-restore
                    fi
                    echo 'Done!'

            preStop:
              exec:
                command:
                  - /cni-uninstall.sh
          securityContext:
            seLinuxOptions:
              level: s0
              type: spc_t
            capabilities:
              add:
                - CHOWN
                - KILL
                - NET_ADMIN
                - NET_RAW
                - IPC_LOCK
                - SYS_MODULE
                - SYS_ADMIN
                - SYS_RESOURCE
                - DAC_OVERRIDE
                - FOWNER
                - SETGID
                - SETUID
              drop:
                - ALL
          terminationMessagePolicy: FallbackToLogsOnError
          volumeMounts:
            # Unprivileged containers need to mount /proc/sys/net from the host
            # to have write access
            - mountPath: /host/proc/sys/net
              name: host-proc-sys-net
              # /proc/sys/net
            # Unprivileged containers need to mount /proc/sys/kernel from the host
            # to have write access
            - mountPath: /host/proc/sys/kernel
              name: host-proc-sys-kernel
              # /host/proc/sys/kernel
            - name: bpf-maps
              mountPath: /sys/fs/bpf
              # /sys/fs/bpf
              # Unprivileged containers can't set mount propagation to bidirectional
              # in this case we will mount the bpf fs from an init container that
              # is privileged and set the mount propagation from host to container
              # in Cilium.
              mountPropagation: HostToContainer
            - name: cilium-run
              mountPath: /var/run/cilium
            - name: etc-cni-netd
              mountPath: /host/etc/cni/net.d
            - name: clustermesh-secrets
              mountPath: /var/lib/cilium/clustermesh
              readOnly: true
            - name: cni-configuration
              mountPath: /tmp/cni-configuration
              readOnly: true
              # Needed to be able to load kernel modules
            - name: lib-modules
              mountPath: /lib/modules
              # /lib/modules
              readOnly: true
            - name: xtables-lock
              mountPath: /run/xtables.lock
            - name: hubble-tls
              mountPath: /var/lib/cilium/tls/hubble
              readOnly: true
            - name: tmp
              mountPath: /tmp

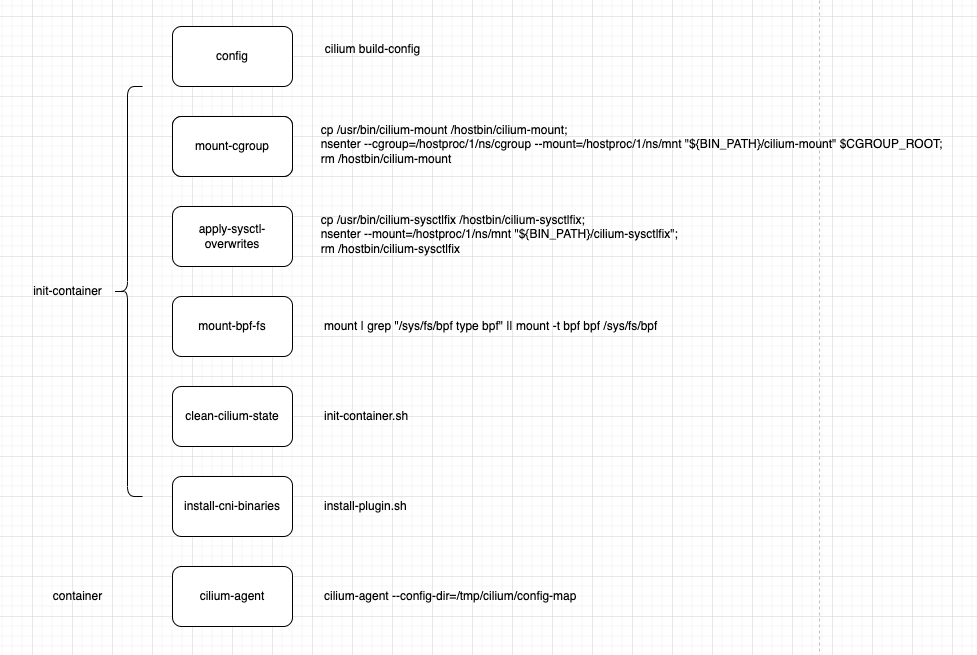

根据定义,可以梳理出下面的流程图。

/cilium-agent%E7%9A%84daemonset%E5%90%AF%E5%8A%A8%E6%B5%81%E7%A8%8B/img_1.png

config

在 config 的容器中,执行了下面的命令。首先 cilium 这个是 Cilium 提供的一个 CLI 的客户端工具。

1
cilium build-config

可以看看 build-config 这个子命令的 help 信息。

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
# cilium build-config -h
Resolve all of the configuration sources that apply to this node

Usage:
  cilium build-config --node-name $K8S_NODE_NAME [flags]

Flags:
      --allow-config-keys strings        List of configuration keys that are allowed to be overridden (e.g. set from not the first source. Takes precedence over deny-config-keys
      --deny-config-keys strings         List of configuration keys that are not allowed to be overridden (e.g. set from not the first source. If allow-config-keys is set, this field is ignored
      --dest string                      Destination directory to write the fully-resolved configuration. (default "/tmp/cilium/config-map")
      --enable-k8s                       Enable the k8s clientset (default true)
      --enable-k8s-api-discovery         Enable discovery of Kubernetes API groups and resources with the discovery API
  -h, --help                             help for build-config
      --k8s-api-server string            Kubernetes API server URL
      --k8s-client-burst int             Burst value allowed for the K8s client
      --k8s-client-qps float32           Queries per second limit for the K8s client
      --k8s-heartbeat-timeout duration   Configures the timeout for api-server heartbeat, set to 0 to disable (default 30s)
      --k8s-kubeconfig-path string       Absolute path of the kubernetes kubeconfig file
      --node-name string                 The name of the node on which we are running. Also set via K8S_NODE_NAME environment. (default "master")
      --source strings                   Ordered list of configuration sources. Supported values: config-map:<namespace>/name - a ConfigMap with <name>, optionally in namespace <namespace>. cilium-node-config:<NAMESPACE> - any CiliumNodeConfigs in namespace <NAMESPACE>.  node:<NODENAME> - Annotations on the node. Namespace and nodename are optional (default [config-map:cilium-config,cilium-node-config:kube-system])

Global Flags:
      --config string   Config file (default is $HOME/.cilium.yaml)
  -D, --debug           Enable debug messages
  -H, --host string     URI to server-side API

查看相关的日志,从帮助信息可以看到,默认的输出地址是 /tmp/cilium/config-map。

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
# k logs cilium-hms7c -c config
Running
level=info msg=Invoked duration=1.338661ms function="cmd.glob..func36 (build-config.go:32)" subsys=hive
level=info msg=Starting subsys=hive
level=info msg="Establishing connection to apiserver" host="https://192.168.1.200:6443" subsys=k8s-client
level=info msg="Connected to apiserver" subsys=k8s-client
level=info msg="Start hook executed" duration=17.191079ms function="client.(*compositeClientset).onStart" subsys=hive
level=info msg="Reading configuration from config-map:kube-system/cilium-config" configSource="config-map:kube-system/cilium-config" subsys=option-resolver
level=info msg="Got 106 config pairs from source" configSource="config-map:kube-system/cilium-config" subsys=option-resolver
level=info msg="Reading configuration from cilium-node-config:kube-system/" configSource="cilium-node-config:kube-system/" subsys=option-resolver
level=info msg="Got 0 config pairs from source" configSource="cilium-node-config:kube-system/" subsys=option-resolver
level=info msg="Start hook executed" duration=13.721533ms function="cmd.(*buildConfig).onStart" subsys=hive
level=info msg=Stopping subsys=hive
level=info msg="Stop hook executed" duration="20.722µs" function="client.(*compositeClientset).onStop" subsys=hive

mount-cgroup

Cilium 使用 cgroup v2 来实施网络策略、监控和其他关键功能。例如,Cilium 可能用于确保只有经过验证的网络流量可以进入和离开容器化的应用程序,或者用于控制容器可以使用多少系统资源等等。

1
2
3
4
5
6
#- name: CGROUP_ROOT value: /run/cilium/cgroupv2
#- name: BIN_PATH value: /opt/cni/bin
cp /usr/bin/cilium-mount /hostbin/cilium-mount;
nsenter --cgroup=/hostproc/1/ns/cgroup --mount=/hostproc/1/ns/mnt "/opt/cni/bin/cilium-mount" /run/cilium/cgroupv2;
nsenter --cgroup=/proc/1/ns/cgroup --mount=/proc/1/ns/mnt "/hostbin/cilium-mount" /run/cilium/cgroupv2;
rm /hostbin/cilium-mount

查看一下帮助信息。

1
2
# /usr/bin/cilium-mount
usage: /usr/bin/cilium-mount <cgroup-mount-point>

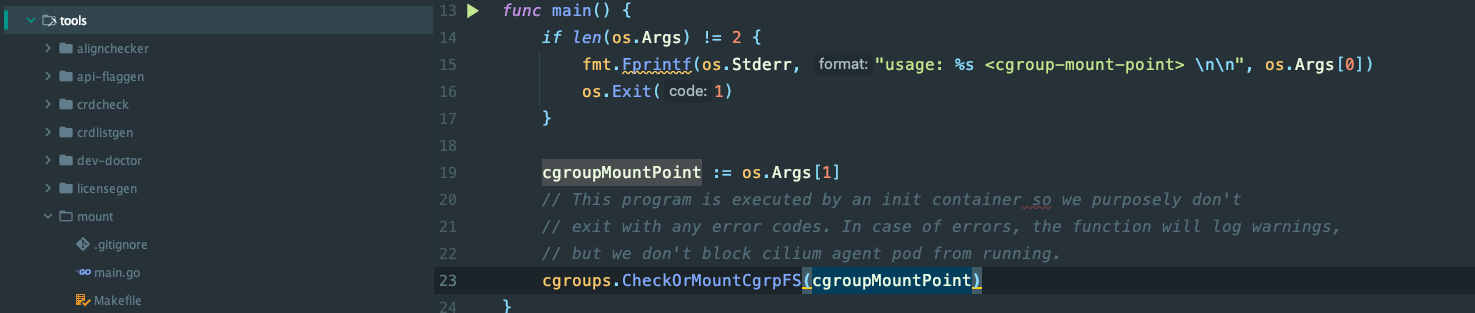

实际上,这是 tools 包里一个很简单的 Go 程序,大部分的 init-container 都是通过这些小型的 Go 程序来完成一些配置化的工作。

/cilium-agent%E7%9A%84daemonset%E5%90%AF%E5%8A%A8%E6%B5%81%E7%A8%8B/img.png

Cilium will automatically mount cgroup v2 filesystem required to attach BPF cgroup programs by default at the path /run/cilium/cgroupv2.

查看一下日志的输出。

1
2
# k logs cilium-hms7c -c mount-cgroup
level=info msg="Mounted cgroupv2 filesystem at /run/cilium/cgroupv2" subsys=cgroups

apply-sysctl-overwrites

主要是用于修改一些系统参数,以适配 Cilium 部署的要求。

1
2
3
4
5
6
# - name: BIN_PATH value: /opt/cni/bin
cp /usr/bin/cilium-sysctlfix /hostbin/cilium-sysctlfix;
cp /usr/bin/cilium-sysctlfix /opt/cni/bin/cilium-sysctlfix;
nsenter --mount=/hostproc/1/ns/mnt "/opt/cni/bin/cilium-sysctlfix";
nsenter --mount=/proc/1/ns/mnt "/opt/cni/bin/cilium-sysctlfix";
rm /hostbin/cilium-sysctlfix

查看一下 cilium-sysctlfix 的帮助信息。

1
2
3
4
5
6
# /usr/bin/cilium-sysctlfix -h
Usage of /usr/bin/cilium-sysctlfix:
      --sysctl-conf-dir string       Path to the sysctl config directory (default "/etc/sysctl.d/")
      --sysctl-config-file string    Filename of the cilium sysctl overwrites config file (default "99-zzz-override_cilium.conf")
      --systemd-sysctl-unit string   Name of the systemd sysctl unit to reload (default "systemd-sysctl.service")
parse flags: pflag: help requested

从宿主机看下面的文件,注释部分可以帮助理解设置系统参数的意义。

1
2
3
4
5
6
7
8
# cat /etc/sysctl.d/99-zzz-override_cilium.conf

# Disable rp_filter on Cilium interfaces since it may cause mangled packets to be dropped
-net.ipv4.conf.lxc*.rp_filter = 0
-net.ipv4.conf.cilium_*.rp_filter = 0
# The kernel uses max(conf.all, conf.{dev}) as its value, so we need to set .all. to 0 as well.
# Otherwise it will overrule the device specific settings.
net.ipv4.conf.all.rp_filter = 0

查看日志。

1
2
# k logs cilium-hms7c -c apply-sysctl-overwrites
sysctl config up-to-date, nothing to do

mount-bpf-fs

这个 init-container 使得进程可以通过文件系统接口来访问 BPF 虚拟文件系统,从而加载和管理 BPF 程序和 maps。提供了一个持久化的存储空间来存储 BPF 对象,这些对象可以在进程之间共享,即使是在进程终止后。

1
mount | grep "/sys/fs/bpf type bpf" || mount -t bpf bpf /sys/fs/bpf

查看一下容器的日志,表示是否挂载成功。

1
2
# k logs cilium-hms7c -c mount-bpf-fs
none on /sys/fs/bpf type bpf (rw,nosuid,nodev,noexec,relatime,mode=700)

clean-cilium-state

这个容器主要做的就是清理一些跟 Cilium 相关的网络接口上的配置,主要是防止 cilium-agent 启动或者重启的时候一些网络配置的残留会影响 Cilium 的正常运作。

1
/init-container.sh

从容器查看脚本的内容。

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
# cat /init-container.sh
#!/bin/sh

# Check for CLEAN_CILIUM_BPF_STATE and CLEAN_CILIUM_STATE
# is there for backwards compatibility as we've used those
# two env vars in our old kubernetes yaml files.

if [ "${CILIUM_BPF_STATE}" = "true" ] \
   || [ "${CLEAN_CILIUM_BPF_STATE}" = "true" ]; then
	cilium cleanup -f --bpf-state
fi

if [ "${CILIUM_ALL_STATE}" = "true" ] \
    || [ "${CLEAN_CILIUM_STATE}" = "true" ]; then
	cilium cleanup -f --all-state
fi

看看 cilium clean 可以有什么作用。

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
# cilium cleanup -h
Clean up CNI configurations, CNI binaries, attached BPF programs,
bpffs, tc filters, routes, links and named network namespaces.

Running this command might be necessary to get the worker node back into
working condition after uninstalling the Cilium agent.

Usage:
  cilium cleanup [flags]

Flags:
      --all-state   Remove all cilium state
      --bpf-state   Remove BPF state
  -f, --force       Skip confirmation
  -h, --help        help for cleanup

Global Flags:
      --config string   Config file (default is $HOME/.cilium.yaml)
  -D, --debug           Enable debug messages
  -H, --host string     URI to server-side API

如果还需要做什么清理工作,可以在这个子命令中添加。

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
func (c ciliumCleanup) whatWillBeRemoved() []string {
	toBeRemoved := []string{}

	if len(c.tcFilters) > 0 {
		section := "tc filters\n"
		for linkName, f := range c.tcFilters {
			section += fmt.Sprintf("%s %v\n", linkName, f)
		}
		toBeRemoved = append(toBeRemoved, section)
	}
	if len(c.xdpLinks) > 0 {
		section := "xdp programs\n"
		for _, l := range c.xdpLinks {
			section += fmt.Sprintf("%s: xdp/prog id %v\n", l.Attrs().Name, l.Attrs().Xdp.ProgId)
		}
		toBeRemoved = append(toBeRemoved, section)
	}

	if c.bpfOnly {
		return toBeRemoved
	}

	if len(c.routes) > 0 {
		section := "routes\n"
		for _, v := range c.routes {
			section += fmt.Sprintf("%v\n", v)
		}
		toBeRemoved = append(toBeRemoved, section)
	}

	if len(c.links) > 0 {
		section := "links\n"
		for _, v := range c.links {
			section += fmt.Sprintf("%v\n", v)
		}
		toBeRemoved = append(toBeRemoved, section)
	}

	if len(c.netNSs) > 0 {
		section := "network namespaces\n"
		for _, n := range c.netNSs {
			section += fmt.Sprintf("%s\n", n)
		}
		toBeRemoved = append(toBeRemoved, section)
	}
	toBeRemoved = append(toBeRemoved, fmt.Sprintf("socketlb bpf programs at %s",
		defaults.DefaultCgroupRoot))
	toBeRemoved = append(toBeRemoved, fmt.Sprintf("mounted cgroupv2 at %s",
		defaults.DefaultCgroupRoot))
	toBeRemoved = append(toBeRemoved, fmt.Sprintf("library code in %s",
		defaults.LibraryPath))
	toBeRemoved = append(toBeRemoved, fmt.Sprintf("endpoint state in %s",
		defaults.RuntimePath))
	toBeRemoved = append(toBeRemoved, fmt.Sprintf("CNI configuration at %s, %s, %s, %s, %s",
		cniConfigV1, cniConfigV2, cniConfigV3, cniConfigV4, cniConfigV5))
	return toBeRemoved
}

这个容器没有日志输出,这里其实可以也打一些日志,确保是否有真正执行一些清理的工作。

1
# k logs cilium-hms7c -c clean-cilium-state

install-cni-binaries

这个就很熟悉了,大部分的 CNI 都会通过这样的方式将 CNI 的二进制放到宿主机的 /etc/cni/net.d/ 这个目录里。

1
/install-plugin.sh

查看一下脚本的具体内容。

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
# cat /install-plugin.sh
#!/bin/bash

# Copy the cilium-cni plugin binary to the host

set -e

HOST_PREFIX=${HOST_PREFIX:-/host}

BIN_NAME=cilium-cni
CNI_DIR=${CNI_DIR:-${HOST_PREFIX}/opt/cni}
CILIUM_CNI_CONF=${CILIUM_CNI_CONF:-${HOST_PREFIX}/etc/cni/net.d/${CNI_CONF_NAME}}

if [ ! -d "${CNI_DIR}/bin" ]; then
	mkdir -p "${CNI_DIR}/bin"
fi

# Install the CNI loopback driver if not installed already
if [ ! -f "${CNI_DIR}/bin/loopback" ]; then
	echo "Installing loopback driver..."

	# Don't fail hard if this fails as it is usually not required
	cp /cni/loopback "${CNI_DIR}/bin/" || true
fi

echo "Installing ${BIN_NAME} to ${CNI_DIR}/bin/ ..."

# Copy the binary, then do a rename
# so the move is atomic
rm -f "${CNI_DIR}/bin/${BIN_NAME}.new" || true
cp "/opt/cni/bin/${BIN_NAME}" "${CNI_DIR}/bin/.${BIN_NAME}.new"
mv "${CNI_DIR}/bin/.${BIN_NAME}.new" "${CNI_DIR}/bin/${BIN_NAME}"

echo "wrote ${CNI_DIR}/bin/${BIN_NAME}"

查看日志。

1
2
3
# k logs cilium-hms7c -c install-cni-binaries
Installing cilium-cni to /host/opt/cni/bin/ ...
wrote /host/opt/cni/bin/cilium-cni

cilium-agent

关于 cilium-agent 的启动分析,会在后面的文章里详细展开。

总结

根据以上的分析,可以总结一下,在 Kubernetes 集群内部的节点下,启动 cilium-agent 的二进制之前需要执行下面的脚本。

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
# step1: config
cilium build-config
cilium build-config --k8s-kubeconfig-path /root/.kube/config  --source config-map:kube-system/cilium-config

mkdir -p /hostbin /var/run/cilium /sys/fs/bpf /run/cilium/cgroupv2 /opt/cni/bin /etc/cni/net.d /proc/sys/net /proc/sys/kernel
# step2: mount-cgroup

# /hostbin是一个非常临时的目录
# /hostproc相当于/proc
mkdir -p /hostbin
mkdir -p /hostproc
mount --bind /proc /hostproc
mount --bind /opt/cni/bin /hostbin
export BIN_PATH=/opt/cni/bin
export CGROUP_ROOT=/run/cilium/cgroupv2

cp /usr/bin/cilium-mount /hostbin/cilium-mount;
nsenter --cgroup=/hostproc/1/ns/cgroup --mount=/hostproc/1/ns/mnt "${BIN_PATH}/cilium-mount" $CGROUP_ROOT;
rm /hostbin/cilium-mount

# step3: apply-sysctl-overwrites
mkdir -p /hostbin
mkdir -p /hostproc
mount --bind /proc /hostproc
mount --bind /opt/cni/bin /hostbin
export BIN_PATH=/opt/cni/bin

cp /usr/bin/cilium-sysctlfix /hostbin/cilium-sysctlfix;
nsenter --mount=/hostproc/1/ns/mnt "${BIN_PATH}/cilium-sysctlfix";
rm /hostbin/cilium-sysctlfix

# step4: mount-bpf-fs
mount | grep "/sys/fs/bpf type bpf" || mount -t bpf bpf /sys/fs/bpf

# step5: clean-cilium-state
/init-container.sh

# step6: install-cni-binaries
/install-plugin.sh

参考资料

  1. Cilium Docs
警告
本文最后更新于 2023年11月12日,文中内容可能已过时,请谨慎参考。
